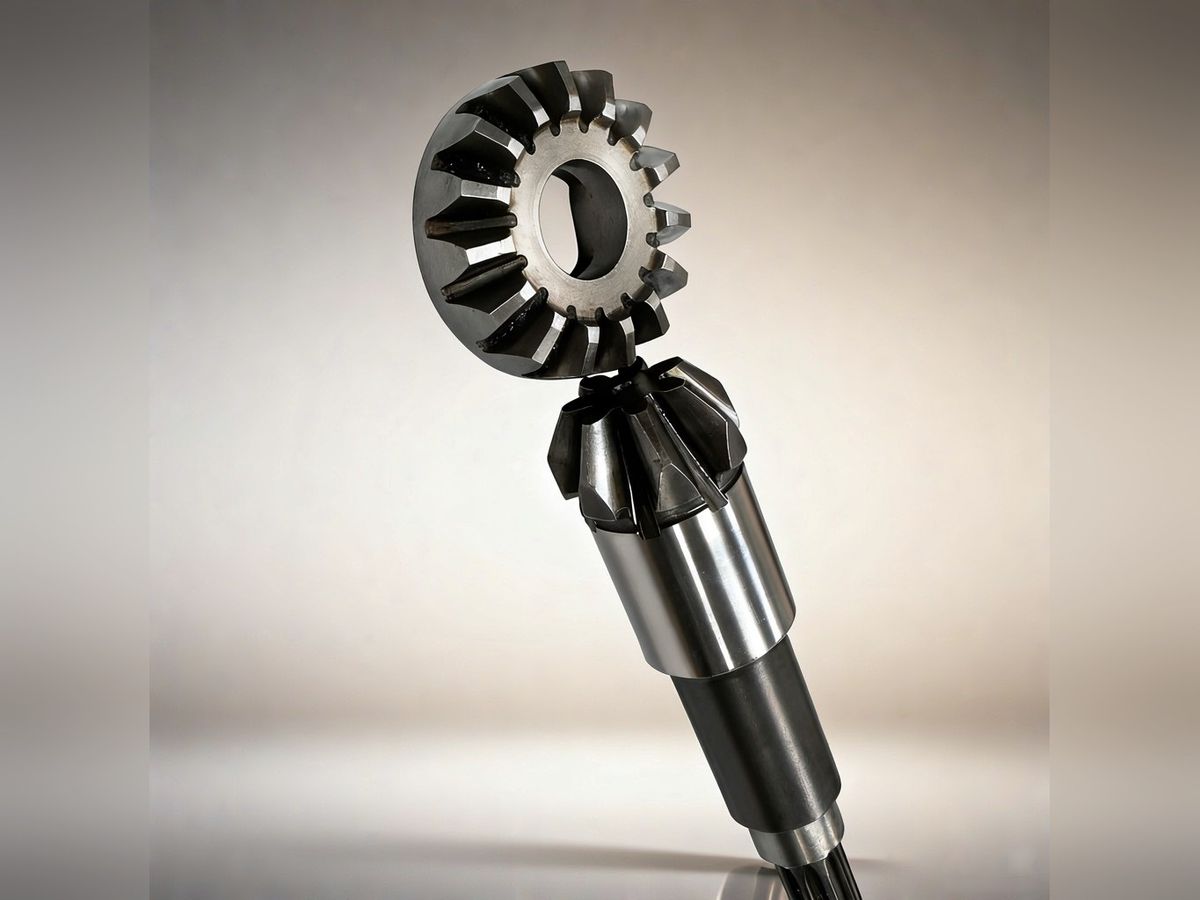

Bevel Gears

Geyontech straight and spiral bevel gears. Precision milling and grinding for high-speed heavy-load applications.

Specifications#

Spiral Bevel Gears: Specifications, Applications and Grinding Process for Precision Right-Angle Drives#

Spiral bevel gears are transmission components that redirect power between intersecting shafts. The most common shaft angle is 90°, the tooth trace is an arc, and the teeth engage diagonally from one end to the other. Compared with straight bevel gears, they have more teeth in simultaneous mesh and a larger contact area, so they run more smoothly, carry greater loads, and produce less noise. They are a staple in applications that require both a change of direction and high torque capacity, such as automotive differentials and industrial right-angle gearboxes.

Geyon Transmission’s engineering team brings 13 years of precision-gear experience (company established in 2020). Spiral bevel gears are delivered in stable batch production to DIN/ISO class 4~5, with tooth surfaces carburized and hardened to 58~62 HRC. The common module range is M1~10, with 12~80 teeth, and according to drawings we can cover straight bevel, spiral bevel, and internal gear tooth forms. Below, the specifications, applications, and machining know-how are laid out in one pass; the data all come from Geyon’s product files, and where something is uncertain we will not force a claim.

1. Why right-angle drives mostly choose spiral teeth#

Bevel gears fall mainly into two categories: those with a straight tooth trace are called straight bevel gears, and those with an arced tooth trace are called spiral bevel gears. For right-angle drive equipment, the first step in selection is to distinguish between these two.

Straight bevel gears are simple in structure and low in blank cost, but only one or two pairs of teeth mesh at a time, which easily causes impact; as speed and load increase, noise rises. They suit demanding-free applications such as agricultural machinery and general machinery.

Spiral bevel gears are different. Their teeth are cut diagonally along the length direction, giving a high contact ratio; at any moment several pairs of teeth share the load, so meshing is smoother, the force they can withstand is greater, and noise is lower. The price is a complex tooth form and high demands on machining and inspection equipment — which is exactly where the value of the grinding process lies. In automotive rear axle differentials, industrial right-angle gearboxes, and rolling mill drives, the main reduction stage almost always relies on them.

2. Specifications: common ranges and material selection#

The following are Geyon’s common machining and inspection ranges for spiral bevel gears; specific dimensions are determined by the drawing:

Materials and heat treatment must be chosen according to the operating conditions; tooth surface hardness and accuracy follow different routes:

For the gear blank, the pitch cone angle, the large-end pitch circle, the cone distance, and the face width constrain one another: the pitch cone angle is determined by the tooth count ratio of the two gears, the cone distance equals the large-end pitch circle diameter divided by twice the sine of the pitch cone angle, and the face width generally does not exceed one third of the cone distance. Once the drawing is in hand, calculate these clearly from the gear ratio and installation space before discussing machining.

3. Application scenarios: which equipment uses them#

The main job of spiral bevel gears is right-angle transmission with high torque. The most common places:

• Automotive differentials and axles: the main reduction bevel gear pair withstands impact and high loads through carburizing and hardening plus gear grinding — this is its traditional main battlefield.
• Industrial right-angle gear reducers: where the motor shaft power must be turned to a vertical direction while keeping noise low, a spiral bevel gear stage is often used.
• Construction machinery and mining equipment: bevel gear pairs in slewing mechanisms and travel mechanisms face frequent impact, so tooth surface hardness and tooth root strength are the key considerations.
• High-end equipment and automation: for right-angle drive units with specific requirements on accuracy, noise, and service life, a manufacturability review is carried out first after the drawing arrives, then a quotation is issued.

Geyon’s gear customization follows drawings. When a drawing comes in, we first assess whether the tooth form and accuracy can be achieved consistently, then propose a plan. See Gear Customization Service.

4. Process advantages: hard tooth surfaces still need accurate grinding#

The difficulty with spiral bevel gears is that the teeth are three-dimensional curved surfaces. Hardness alone is not enough; if the tooth surface shape deviates slightly, the contact area shifts, and both the noise and service life of the whole machine suffer. Geyon’s machining checks the work at several stages:

1. Gear milling first forms the teeth. A bevel gear milling machine rough-mills the tooth slots into place, leaving allowance for heat treatment and grinding. For parts with large modules and stable batch sizes, this step determines how well subsequent distortion can be corrected.

2. Carburizing and hardening make the tooth surfaces hard. For materials such as 20CrMnTi, carburizing and hardening brings the tooth surface to 58~62 HRC — hard on the surface and tough in the core, balancing wear resistance and resistance to tooth breakage. The carburizing step involves considerable distortion, so high-precision parts almost always require gear grinding after hardening.

3. Gear grinding restores accuracy. After carburizing, the tooth surfaces distort; a bevel gear grinding machine performs rough grinding followed by finish grinding to bring the tooth form, tooth lead, and contact area to drawing requirements, with batch production stable at DIN/ISO class 4~5.

4. Contact area and pairing inspection. Spiral bevel gears are meant to be used in pairs. Before shipment, the position and size of the tooth surface contact pattern are checked by the marking compound method, together with a gear measuring center for tooth form and tooth lead. If the contact area is off, it is reworked and adjusted; only after it passes is the set paired, and the inspection report ships with the goods. For the complete list of inspection items, see Gear Inspection Report.

Through this flow, the pitfalls that ordinary suppliers stumble into — insufficient tooth surface hardness, grinding burn, and shifted contact areas — are blocked before shipment as far as possible. For detailed descriptions of the processes and equipment, see Precision Gear Grinding Process.

5. Send drawings over — we review first, then quote#

Gear reducer manufacturers, automotive component manufacturers, OEMs, and traders all deal with us directly. Send PDF, DWG, or Solidworks drawings, or provide the three parameters of module, number of teeth, and gear ratio; engineering conducts a review first and usually returns a technical proposal and quotation within 1~2 working days. Paired grinding and paired shipment; lead time is given according to the production schedule.

Inquiry process: send drawings → drawing review → quotation → prototyping or batch production. Email sales@geyontech.com with the subject line “Spiral bevel gear inquiry”. For more products, see Product Center.

Manufacturing processes#

• Straight bevel gears: Gleason gear cutting
• Spiral bevel gears: cutting + grinding
• Matched-pair lapping and running-in

Features#

• Right-angle drive
• High torque capacity
• Low-noise operation

Applications#

• Automotive differentials
• Right-angle drives for industrial machinery
• Construction machinery drive axles
