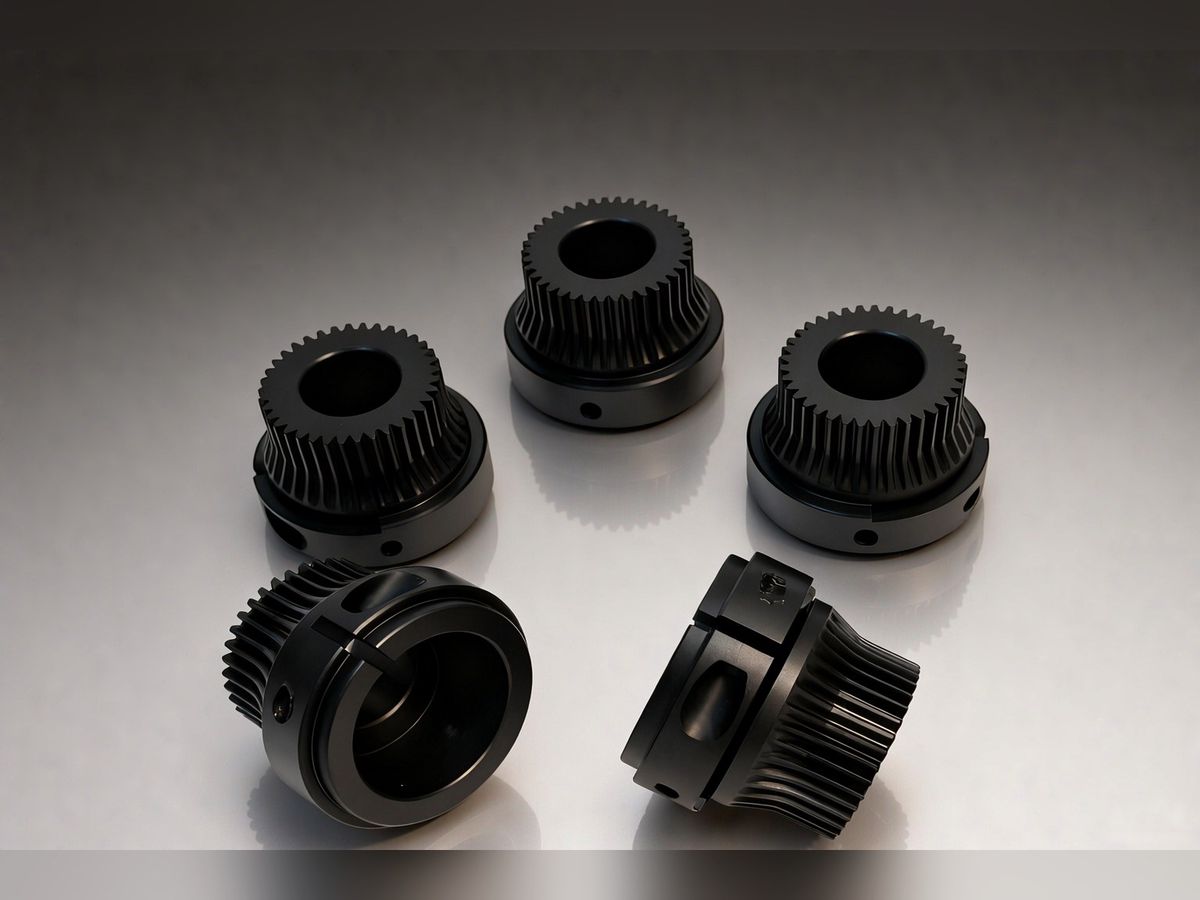

Custom Gears
Geyontech custom gear manufacturing from drawings. Non-standard modules and special profiles, reviewed by an engineer before quoting.
Geyontech custom gear manufacturing from drawings. Non-standard modules and special profiles, reviewed by an engineer before quoting.
Specifications#
| Module range | M0.3~M20 (non-standard module) |
| Max. outer diameter | ≤Φ800mm |
| Customization types | Non-standard module gears / special tooth profiles (cycloidal / circular arc) / spline bores / custom-shaped drive components |
| Accuracy range | Per customer requirement (GB grade 3~9) |
| Machinable materials | Alloy steel / Stainless steel / Copper alloy / Aluminium alloy / Engineering plastics |
| Applicable standards | Per customer drawing / reverse-engineered from sample per GB/DIN/ISO/AGMA |
| Customization process | Drawing confirmation → process review → quotation & lead time → sample production → quality inspection |
Manufacturing processes#
- Drawing-based process review
- CNC programming and machining
- Full-dimensional inspection
- Reverse engineering and replication
Features#
- No minimum order quantity
- Fast prototyping
- Custom manufacturing from drawings
- Import substitution
Applications#
- Non-standard equipment
- Drives for special operating conditions
- Replacement and repair of worn gears
- Localization of imported gears
Send us a drawing — get engineering feedback first
Upload a 2D/3D drawing (STEP, DXF, PDF) — we reply with a quote and lead time.
