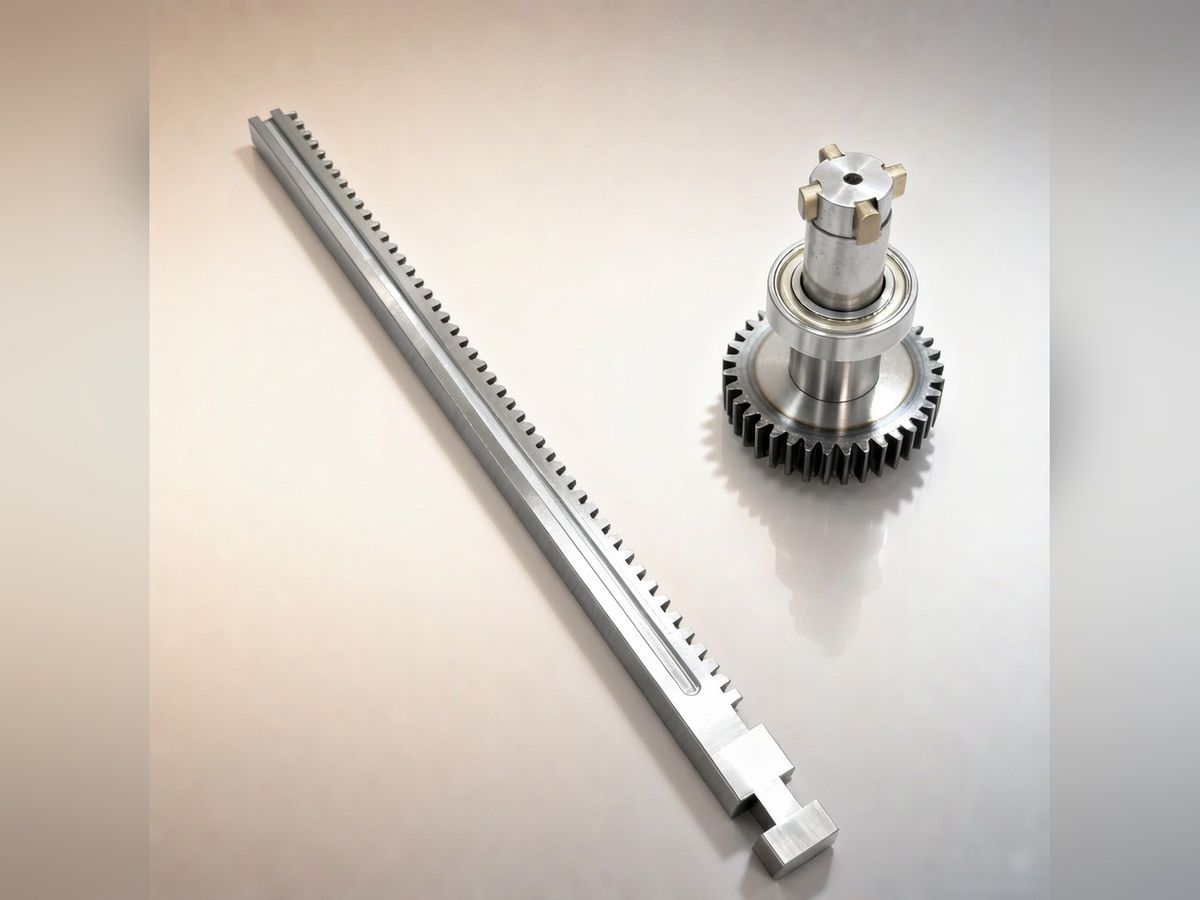

Precision Gear Racks

Precision gear racks — helical/straight, ground DIN 6h25 and milled DIN 8e27/10e27, S45C steel, hardened HRC48-52, module M1–M12, 500/1000mm, joinable to any length.

Precision gear racks — helical/straight, ground DIN 6h25 and milled DIN 8e27/10e27, S45C steel, hardened HRC48-52, module M1–M12, 500/1000mm, joinable to any length.

Specifications#

ToothSpur gear / Helical gear
AccuracyGrinding DIN 6h25; Milling DIN 8e27 / 10e27
Pitch error (per 1000mm)0.036 / 0.08 / 0.13 mm
ModuleM1 ~ M12
Std. length500mm / 1000mm (spliceable)
MaterialS45C / SCM440
HardnessInduction hardened HRC48-52; Quenched & tempered HRC18-20
Tooth finishGrinding / Milled; optional four-side grinding

Precision Gear Racks

Technical Specifications#

ToothStraight / Helical
AccuracyGround DIN 6h25; milled DIN 8e27 / 10e27
Cumulative pitch error0.036 / 0.08 / 0.13 mm per 1000mm
ModuleM1 – M12
Standard length500mm / 1000mm (joinable)
MaterialS45C / SCM440
HardnessInduction hardened HRC48-52; tempered HRC18-20
Tooth finishGround / milled; sides grinding optional

Manufacturing Process#

  • Rack milling / grinding
  • Sides grinding
  • Induction hardening / tempering
  • Drilling to drawing

Key Features#

  • Ground grade DIN 6h25 (0.036mm/1000mm)
  • Induction hardened HRC48-52
  • Joinable to any length
  • Common modules from stock

Applications#

  • CNC machines
  • Laser cutting
  • Automation lines
  • Woodworking machines
  • Logistics conveying

Five Precision Rack Series#

From economic DIN 10e27 to ground DIN 6h25 — one range covers different accuracy and budget levels.

SeriesToothTooth finishAccuracyCumulative pitch error (/1000mm)HardnessSides groundModulesStd. length (mm)Typical application
GY-CHTGH Helical Ground RackHelicalGroundDIN 6h250.036Induction hardened HRC48-52Yes1 / 1.5 / 2 / 3 / 4 / 5 / 6 / 8 / 10 / 12500 / 1000CNC machines, laser cutting, high-precision linear drive
GY-CSTGH Straight Ground RackStraightGroundDIN 6h250.036Induction hardened HRC48-52Yes1 / 1.5 / 2 / 3 / 4 / 5 / 6 / 8 / 10 / 12500 / 1000CNC X/Y axes, woodworking machines, automation lines
GY-CSTMH Straight Milled Rack (Hardened)StraightMilledDIN 10e270.13Induction hardened HRC48-52No1 / 1.5 / 2 / 3 / 4 / 5 / 6 / 8 / 10500 / 1000General machinery, logistics conveying, gantry lifts
GY-CSTMQ Straight Milled Rack (Tempered)StraightMilledDIN 8e270.08Tempered HRC18-20 (machinable)No1 / 1.5 / 2 / 3 / 4 / 5 / 6 / 8 / 10500 / 1000Custom drives needing secondary machining, light-load mechanisms
GY-CHTMH Helical Milled RackHelicalMilledDIN 10e270.13Induction hardened HRC48-52No1 / 1.5 / 2 / 3 / 4 / 5 / 6 / 8 / 10500 / 1000Low-noise drives, smooth high-speed running

Model Code Explained#

Each code combines material, tooth type, finish and hardness — e.g. GY-CHTGH = S45C, helical, tetragon bar, ground, hardened.

FieldMeaning
MaterialC = S45C; M = SCM440
Rack typeS = straight; H = helical
ShapeT = tetragon bar; R = round bar
Tooth treatmentG = ground; M = milled
HardnessH = hardened; Q = tempered & quenched; blank = none
Modulee.g. 20 = M2
Lengthe.g. 05 = 500mm; 10 = 1,000mm
HolesN = no holes
Sides ground-G = sides ground
TypeS = standard; C = custom

Series Selection Guide#

Pick the series by accuracy, hardness and machining method.

ItemGY-CHTGHGY-CSTGHGY-CSTMHGY-CSTMQGY-CHTMH
ToothHelicalStraightStraightStraightHelical
Tooth finishGroundGroundMilledMilledMilled
AccuracyDIN 6h25DIN 6h25DIN 10e27DIN 8e27DIN 10e27
HardnessInduction hardened HRC48-52Induction hardened HRC48-52Induction hardened HRC48-52Tempered HRC18-20 (machinable)Induction hardened HRC48-52
Sides groundYesYesNoNoNo
PositioningHighest-accuracy flagshipHigh-accuracy workhorseHardened economyMachinableLow-noise smooth

Straight Standard Racks in Stock#

Modules m1–m5 available from stock; drilling, hardening and surface finishes optional; lengths customizable.

ModuleCommon sections (width x height, mm)Stock lengthOptional processes
1m10*10, 10*12, 10*15, 12*12, 15*15, 16*16, 17*17, 20*201m / 1.5m / 2m / 3mDrilling, hardening, blackening, zinc/chrome plating, grey finishing, etc.
1.5m15*15, 12*12, 15*20, 16*16, 17*17, 20*20, 10*10, 10*15, 15*10, 25*251m / 1.5m / 2m / 3mDrilling, hardening, blackening, zinc/chrome plating, grey finishing, etc.
1.25m20*201m / 1.5m / 2m / 3mDrilling, hardening, blackening, zinc/chrome plating, grey finishing, etc.
2m15*15, 12*12, 20*20, 25*25, 20*30, 30*301m / 1.5m / 2m / 3mDrilling, hardening, blackening, zinc/chrome plating, grey finishing, etc.
2.5m25*25, 20*20, 30*301m / 1.5m / 2m / 3mDrilling, hardening, blackening, zinc/chrome plating, grey finishing, etc.
3m30*30, 30*35, 20*20, 25*25, 40*401m / 1.5m / 2m / 3mDrilling, hardening, blackening, zinc/chrome plating, grey finishing, etc.
3.5m30*301m / 1.5m / 2m / 3mDrilling, hardening, blackening, zinc/chrome plating, grey finishing, etc.
4m25*25, 40*40, 30*301m / 1.5m / 2m / 3mDrilling, hardening, blackening, zinc/chrome plating, grey finishing, etc.
5m50*50, 30*30, 40*40, 25*251m / 1.5m / 2m / 3mDrilling, hardening, blackening, zinc/chrome plating, grey finishing, etc.

Detailed Parameter Tables#

Full dimension tables (mm). Scroll horizontally for all columns. D/I/A/C1/C2/E/D1/I1/C3 are section and mounting-hole locating dimensions — see the model code above.

GY-CHTGH — Helical Ground Rack（DIN 6h25）#

ModelModuleL(mm)PitchTeethBA0A1DIHolesAC1C2ED1I1C3
GY-CHTGH-010-05-S15003.14150151514----------
GY-CHTGH-015-05-S1.55006.7100191917.562.512548711731.7436.65.7
GY-CHTGH-015-10-S1.510006.7200191917.562.512588711731.7936.65.7
GY-CHTGH-020-05-S25008.57524242262.512548711731.3436.65.7
GY-CHTGH-020-10-S210008.515024242262.512588711731.3936.65.7
GY-CHTGH-030-05-S3508.9410.35029292663.62127.23491015934.4440.17.7
GY-CHTGH-030-10-S3100010.310029292663.62127.23891015934.4940.17.7
GY-CHTGH-040-05-S4506.6713.83839393562.51254121015933.3433.07.7
GY-CHTGH-040-10-S4100013.87539393562.51258121015933.3933.47.7
GY-CHTGH-050-05-S550017.43049393462.512541214201337.5425.011.7
GY-CHTGH-060-05-S650020.92559494362.512541618261737.5425.015.7
GY-CHTGH-060-10-S6100020.95059494362.512581618261737.5925.015.7
GY-CHTGH-080-08-S8960281879797160.0120425223321120.0240.019.7
GY-CHTGH-100-10-S10100035.113099998962.5125832334832125.0750.019.7
GY-CHTGH-120-10-S12100042.562512012010840.0125840395838125.0750.019.7

GY-CSTGH — Straight Ground Rack（DIN 6h25）#

ModelModuleL(mm)PitchTeethBA0A1DIHolesAC1C2ED1I1C3
GY-CSTGH-010-05-S1499.513.14159151514----------
GY-CSTGH-015-05-S1.5499.516.7106191917.562.44124.8848711729.0440.55.7
GY-CSTGH-015-10-S1.5999.036.7212191917.562.44124.8888711729.0941.05.7
GY-CSTGH-020-05-S2502.658.58024242262.83125.6648711731.3440.15.7
GY-CSTGH-020-10-S21005.318.516024242262.83125.6688711731.3942.75.7
GY-CSTGH-030-05-S3508.9410.35429292663.62127.23491015934.4440.17.7
GY-CSTGH-030-10-S31017.8810.310829292663.62127.23891015934.4949.17.7
GY-CSTGH-040-05-S4502.6513.84039393562.83125.664121015937.5427.77.7
GY-CSTGH-040-10-S41005.3113.88039393562.83125.668121015937.5930.37.7
GY-CSTGH-050-05-S5502.6517.43249393462.83125.6641214201330.1442.411.7
GY-CSTGH-060-05-S6508.9420.92759494363.62127.2341618261731.4446.115.7
GY-CSTGH-060-10-S61017.8820.95459494363.62127.2381618261731.4955.015.7
GY-CSTGH-080-08-S81005.31284079797162.83125.6682522332126.6952.019.7
GY-CSTGH-100-10-S101005.3135.113299998962.83125.66832334832125.7753.9619.7
GY-CSTGH-120-12-S121017.942.562712012010863.6127.23840395838127.23763.419.7

GY-CSTMH — Straight Milled Rack (Hardened)（DIN 10e27）#

ModelModuleL(mm)PitchTeethBA0A1DIHolesAC1C2ED1I1C3
GY-CSTMH-010-05-S1499.513.14159151514----------
GY-CSTMH-015-05-S1.5499.516.7106191917.562.44124.8848711729.0441.55.7
GY-CSTMH-015-10-S1.5999.036.7212191917.562.44124.8888711729.0941.05.7
GY-CSTMH-020-05-S2502.658.58024242262.83125.6648711731.3440.15.7
GY-CSTMH-020-10-S21005.318.516024242262.83125.6688711731.3942.75.7
GY-CSTMH-030-05-S3508.9410.35429292663.62127.23491015934.4440.17.7
GY-CSTMH-030-10-S31017.8810.310829292663.62127.23891015934.4949.17.7
GY-CSTMH-040-05-S4502.6513.84039393562.83125.664121015937.5427.77.7
GY-CSTMH-040-10-S41005.3113.88039393562.83125.668121015937.5930.37.7
GY-CSTMH-050-05-S5502.6517.43249393462.83125.6641214201330.1442.411.7
GY-CSTMH-060-05-S6508.9420.92759494363.62127.2341618261731.4446.115.7
GY-CSTMH-060-10-S61017.8820.95459494363.62127.2381618261731.4955.015.7
GY-CSTMH-080-08-S8502.65282079797163.83127.2342522332126.6449.519.7
GY-CSTMH-100-10-S101005.3135.113299998962.83125.66832334832125.7753.9619.7

GY-CSTMQ — Straight Milled Rack (Tempered)（DIN 8e27）#

ModelModuleL(mm)PitchTeethBA0A1DIHolesAC1C2ED1I1C3
GY-CSTMQ-010-05-S1499.513.14159151514----------
GY-CSTMQ-015-05-S1.5499.516.7106191917.562.44124.8848711729.0441.55.7
GY-CSTMQ-015-10-S1.5999.036.7212191917.562.44124.8888711729.0941.05.7
GY-CSTMQ-020-05-S2502.658.58024242262.83125.6648711731.3440.15.7
GY-CSTMQ-020-10-S21005.318.516024242262.83125.6688711731.3942.75.7
GY-CSTMQ-030-05-S3508.9410.35429292663.62127.23491015934.4440.17.7
GY-CSTMQ-030-10-S31017.8810.310829292663.62127.23891015934.4949.17.7
GY-CSTMQ-040-05-S4502.6513.84039393562.83125.664121015937.5427.77.7
GY-CSTMQ-040-10-S41005.3113.88039393562.83125.668121015937.5930.37.7
GY-CSTMQ-050-05-S5502.6517.43249393462.83125.6641214201330.1442.411.7
GY-CSTMQ-060-05-S6508.9420.92759494363.62127.2341618261731.4446.115.7
GY-CSTMQ-060-10-S61017.8820.95459494363.62127.2381618261731.4955.015.7
GY-CSTMQ-080-08-S8502.65282079797163.83125.6642522332126.6449.519.7
GY-CSTMQ-100-10-S101005.3135.113299998962.83125.66832334832125.7753.9619.7

GY-CHTMH — Helical Milled Rack（DIN 10e27）#

ModelModuleL2L(mm)PitchTeethBA0A1DIHolesAC1C2ED1I1C3
GY-CHTMH-010-05-S115005.35150151514----------
GY-CHTMH-015-05-S1.525006.7100191917.562.512548711731.7436.65.7
GY-CHTMH-015-10-S1.51.510006.7200191917.562.512588711731.7936.65.7
GY-CHTMH-020-05-S225008.57524242262.512548711731.7436.65.7
GY-CHTMH-020-10-S2210008.515024242262.512588711731.7936.65.7
GY-CHTMH-030-05-S3350010.35029292662.5125491015935.0430.07.7
GY-CHTMH-030-10-S33100010.310029292662.5125891015935.0930.07.7
GY-CHTMH-040-05-S44506.6713.83839393562.51254121015933.3433.07.7
GY-CHTMH-040-10-S44100013.87539393562.51258121015933.3933.07.7
GY-CHTMH-050-05-S5550017.43049393462.512541214201337.5425.011.7
GY-CHTMH-060-05-S6650020.92559494362.512541618261737.5425.015.7
GY-CHTMH-060-10-S66100020.95059494362.512581618261737.5925.015.7
GY-CHTMH-080-08-S88960281879797160.0120425223321120.0240.019.7
GY-CHTMH-100-10-S1010100035.113099998962.5125832334832125.0750.019.7

Rack Assembly Instructions#

  1. Racks can be joined to any length; the gap between two adjacent racks must be adjusted to match the pitch.
  2. Position and fasten the first rack.
  3. Use an opposite tooth gauge to locate the next rack and keep the joint pitch continuous.
  4. Check every joint and measure the rack parallelism / straightness with a dial gauge.
  5. Locking pins should be used when assembling the racks.

Need rack selection or a custom rack?

Send your drawing or module requirement for a free quote and selection advice.

Contact us →

Manufacturing processes#

  • Rack finish milling / grinding
  • Four-face grinding
  • Induction hardening / quenching and tempering
  • Drilling to drawing

Features#

  • Ground grade DIN 6h25 (0.036mm/1000mm)
  • Induction hardened HRC48-52
  • Joinable to any length
  • Common modules in stock

Applications#

  • CNC machine tools
  • Laser cutting machines
  • Automated production lines
  • Woodworking machinery
  • Logistics conveying
